Desktop SLS 3D printer
RP SLS180
The equipment is mature, the quality is stable, and the boot powder only needs 1kg, and the use cost is low.
It achieves the perfect combination of small size and large capacity, showing a kind of efficiency and strength beyond the conventional.
Traditional industrial-grade SLS equipment costs more than one million yuan, while desktop-grade equipment significantly reduces the entry barrier, suitable for users with limited budgets.

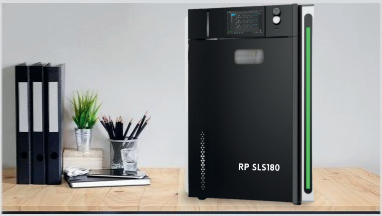

The compact unit can be deployed directly in an office or laboratory and is equipped with a HEPA air filtration system for safe operation

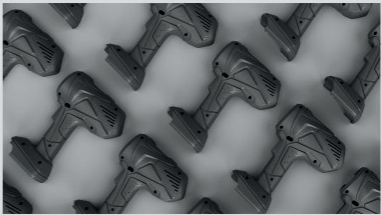

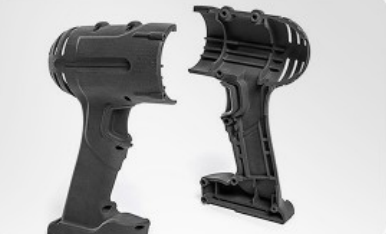

Suitable for product design verification, small batch customized production (such as electronic shell, tool fixture), shorten the development cycle.
| RP SLS180 | ||
|---|---|---|
|
Printing Size |
150*150*180mm |
|
|
Machine Size (L*W*H) |
600*550*800mm |
|
|
Laser Scanning |
High precision industrial galvanometer |
|
|
Layer Thickness |
100-150 microns, default 110 microns |
|
|
Laser Source |
5W, 450nm diode |
|
|
Maximum Part Size |
135*135*180mm |
|
|
Surface Heating |
4 zone semi-gold plated far infrared |
|
|
Material Compatibility |
PA11,12,TPU,CF/GF |
|
|
Air Treatment |
2 stage carbon and HEPA filter |
|
|
Radiation Level |
Class 1 laser products |
|
|
Connection Type |
USB |
|
|
Cooling Time |
< 6 hours |
|
|
Operating Environment |
18-28 °C, <80% relative humidity |
|
|
Slicing Software |
Voxel Dance |
|
|
Heating Time |
15-25 minutes |
|
|
Displayer |
7 inch touch screen displayer |
|
|
Maximum Speed |
Z-axis direction 30 mm/h (150 microns/layer) |
|
|
Power Requirements |
100-120VAC 10A single phase /220-240VAC 5A single phase |
|
