BINDER JETTING 3D PRINTER
RP BJ160
The research-grade 3D printer features high precision, multi-parameter control, digitalization, multi-mode operation, Exepandability, multi-material compatibility, variable build sizes, and cost-effectiveness, catering to the demands of complex scientific research

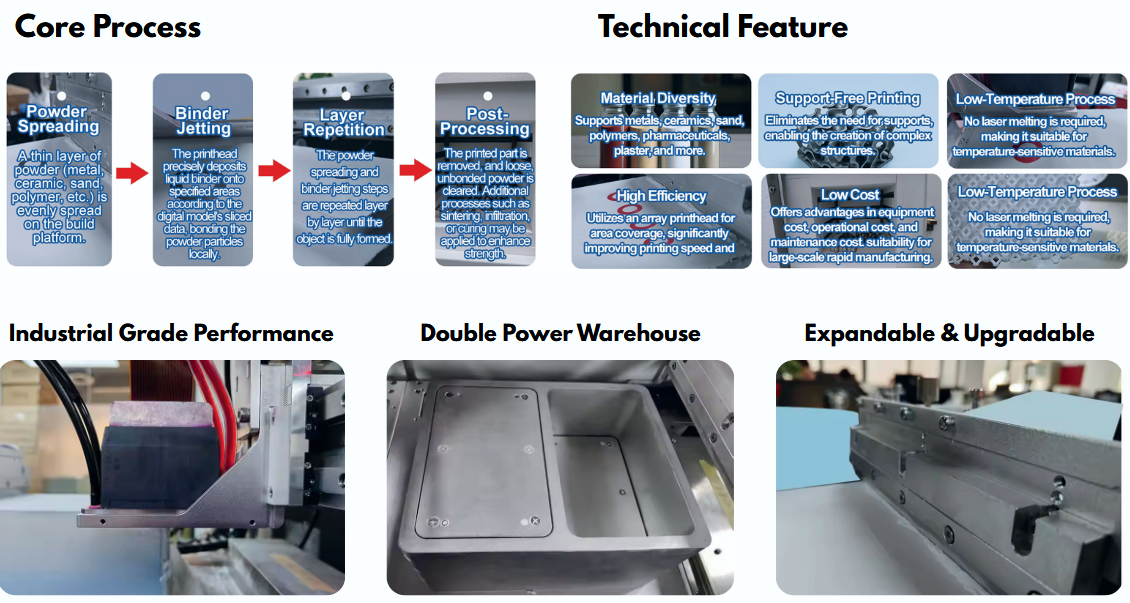

The Soongon Technology ComproJet series 3D printing equipment is positioned forresearch-grade applications, utilizing Binder Jetting (BJ) technology. It combines desktop-level dimensions with industrial-grade performance, meeting the spatial constraints oflaboratories while delivering high performance. The equipment boasts advantages suchas high precision, multi-parameter control, digitalization, multi-mode operation,Exepandability, multi-material compatibility, variable build sizes, and cost-effectiveness.It is compatible with a wide range of materials, including metals, ceramics, polymers,sand, pharmaceuticals, food, biological solutions, cell solutions, and wax, making it idealfor complex research experiments.
| RP BJ160 | ||
|---|---|---|
|
Build Volume |
160×60×60 mm
50×50×50 mm
30×30×30 mm |
|
|
Machine Dimensions |
700×560×620 mm |
|
|
Printhead |
Piezoelectric Printheads with Closed-loop Negative Pressure Ink System |
|
|
Resolution |
Physical Resolution: 600 DPI |
|
|
Print Modes |

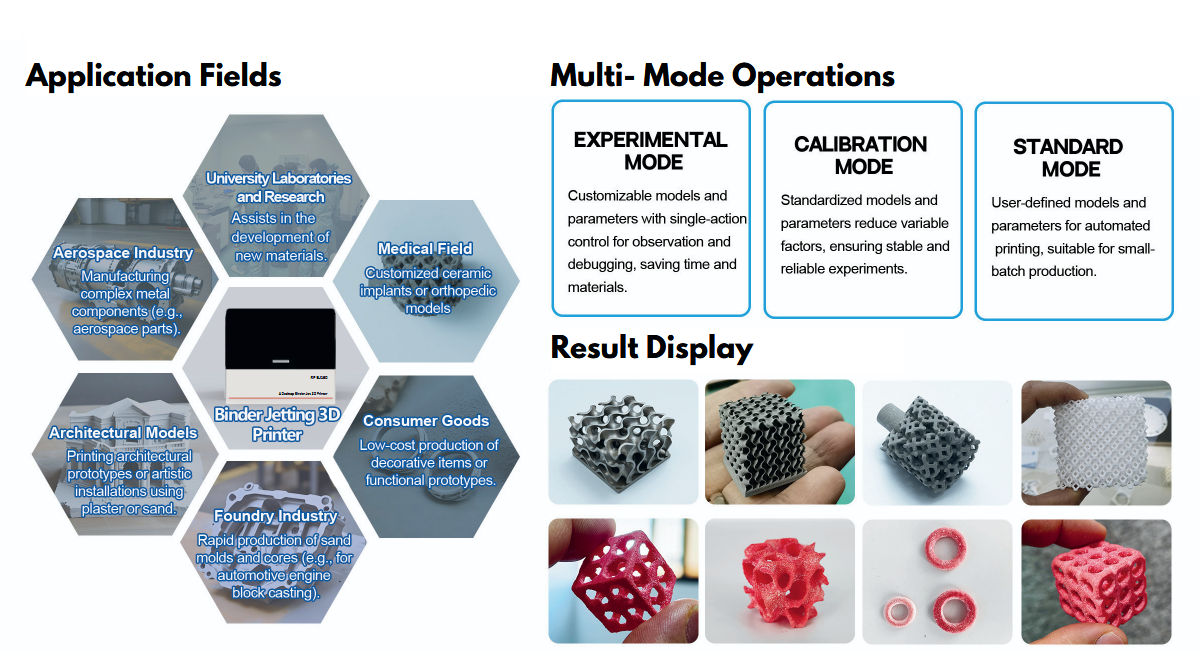

Experimental Mode, Verification Mode, Standard Mode |
|
|
Print Accuracy |
Build Accuracy: 0.1–0.2 mm |
|
|
Print Speed |
15–35 seconds per layer |
|
|
Positioning Accuracy |
Nozzle Positioning Accuracy: 1μm |
|
|
Supported Materials |
Metal Powders, Ceramic Powders, Polymers, Sand, Pharmaceuticals, Food, |
|
|
Special Features |
Nozzle Cleaning |
|
