Raptor 800
Industrial IDEX 3D Printer Designed for High-Temperature Printing
The Raptor 800 is a high-performance industrial FDM 3D printer designed for large-scale, high-temperature engineering applications. With a massive 800 × 800 × 800 mm build volume, 500°C dual extruders, an 80°C actively heated chamber, and a 110°C heated bed, it delivers exceptional accuracy, strength, and reliability when printing advanced materials such as ABS, ASA, PC, PA, PETG, and carbon-fiber composites. It is an ideal solution for aerospace, automotive, tooling, research, and industrial manufacturing.
Key Features
Technical Specifications
120°C Constantly Heated Chamber
500°C High-Temperature Hot End
Fast Printing TechnologyTravel Speed 600mm/s
Large Build Volume 800 × 800 × 800 mm
Independent Dual Extruder System
AI-Powered Safety & Smart Monitoring

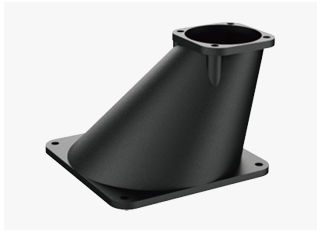

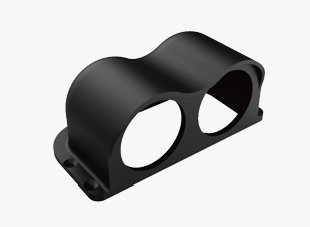

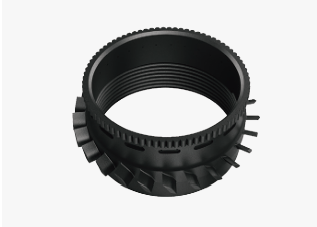

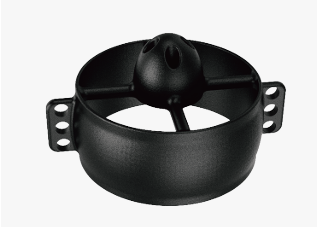

APPLICATIONS
Automotive Parts
Aerospace

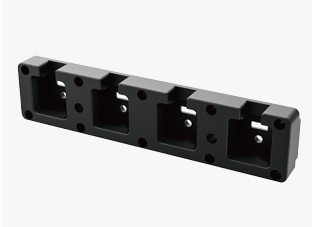

Jigs & Fixtures

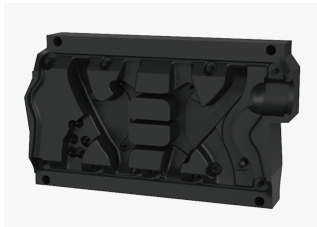

Mold Manufacturing
Defense & Marine Engineering
Education & Research / Material Development
| Raptor 800 | ||
|---|---|---|
|
Printing size: |
800 * 800 * 800 mm |
|
|
Number of Toolheads: |
2 |
|
|
Toolhead Type: |
Lifting Head |
|
|
Nozzle Temperature: |
Max 500 °C |
|
|
Hot Bed Temperature: |
Max 110 °C |
|
|
Constant Chamber Temperature : |
Max 80 °C |
|
|
Spool Box Drying: |
Max 50 °C |
|
|
Print Speed: |
Max 300 mm/s |
|
|
Spool Size: |
3 kg x 2 |
|
|
Auxiliary Feed: |
Yes |
|
|
Thermal Insulation: |
Bellows Cover |
|
|
Machine dimensions: |
1540 * 1606 * 1598mm |
|
|
Package dimensions: |
1640 * 1710 * 1770mm |
|
|
Support Filaments: |
PEEK, ABS, ASA, PETG, ABS-CF, PC, PA, PC-CF, PET-CF, PET-GF, etc |
|
|
Build Plate Movement: |
Z-axis (Vertical) |
|
|
Model Cooling: |
Remote Air Supply |
|
|
Extruder/Heat Break Cooling: |
Water Cooling |
|
|
Air Filtration: |
HEPA Filter |
|
|
Electromagnetic Door Lock： |
Yes |
|
|
Door Open Detection: |
Yes |
|
|
Power Rating: |
6000 W |
|
|
Voltage |
220 V |
|
|
Motors |
Closed-loop Stepper Motors |
|
|
Screen |
15.6-inch |
|
|
AI Detection: |
Yes |
|
|
Material Cabinet Support： |
Yes |
|
|
RFID |
Yes |
|
|
Firmware |
Klipper |
|
