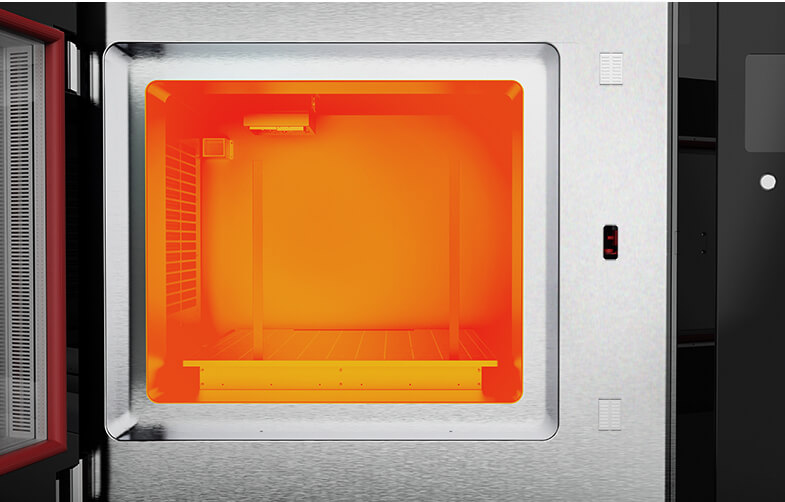

Equipped with a uniformly heated chamber that can reach up to 300°C and a dual extruder capable of reaching 500°C, the FUNMAT PRO 610HT can print nearly all high-performance thermoplastic materials available on the market, ensuring superior print quality and enhanced mechanical properties of the printed parts.

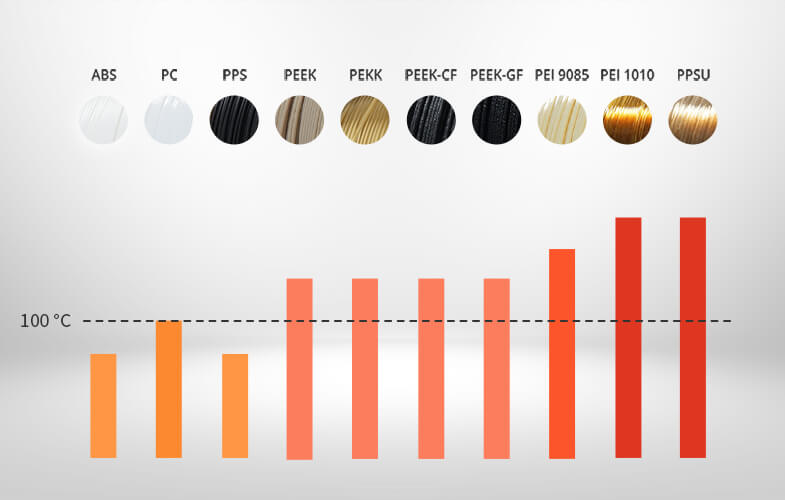

In-depth research into material characteristics like PEEK, PEI, and PPSU, as well as rich experience in high-performance material process development to maximizes the properties of the materials.
| Technical Parameters | |
|---|---|
|
Printing Technology |
Fused Filament Fabrication (FFF) |
|
Build Volume |
610 x 508 x 508 mm (24 x 20 x 20 in) |
|
Layer Thickness |
0.1 – 0.5 mm |
|
Number of Nozzles |
2 |
|
Filament Diameter |
1.75 mm |
|
Print Speed |
Max. 120 mm/s |
|
Nozzle Diameter |
Default: 0.4 mm (Optional: 0.25 / 0.6 mm) |
|
Leveling |
Auto Leveling, Manual Leveling |
|
Materials |
PEEK, PEEK-CF, PEEK-GF, PEKK, PPS, PC, PC-ABS, PPA-CF, PPA-GF, PA6/66, PA6-CF, PA12, PA12-CF, ABS, ASA, HIPS, SP3030, etc. |
|
Nozzle Temprature |
Max. 500 °C (932 °F) |
|
Build Plate Temperature |
Max. 160 °C (320 ℉) |
|
Chamber Temperature |
Max. 90 °C (194 ℉) |
|
Voltage |
3P 380 V 30 A/phase, 50 ～ 60Hz or 3P 200 V 50 A/phase, 50 ～ 60Hz |
|
Max. Power |
3 kW |
|
Connectivity |
WiFi, Ethernet, USB |
|
Screen |
7” Touch Screen |
|
Build Plate |
Ceramics Glass Plate with Magnetic Fixations |
|
Build Chamber |
Fully Enclosed Printing Chamber |
|
Motor System |
High-precision Closed-loop Drive |
|
Cooling |
Liquid Cooling System & Fan |
|
Travel Speed |
Max. XY 300 mm/s, Max. Z 50 mm/s |
|
Resolution |
XY: 15.6 μm; Z: 1.56 μm |
|
Printer Size |
With Warning Lights: 1710 x 1425 x 2350 mm (67.3 x 56.1 x 92.5 in) |
|
Printer Weight |
1450 Kg (3086 lb) |
